Transaction Linking

Transaction linking is how the OCPP Broker finds the driver of a charging session. When a session in Pleevi has no driver, its transaction was not linked to the OCPP start message that carries the badge. This page explains how linking works and how to find out why it failed, using the charger details in the Pleevi Portal.

How linking works

Pleevi links two things that describe the same charging session:

• the transaction your system sends to Pleevi over MQTT or the API, with its asset and start time, and
• the OCPP start message the charger sends through the broker, with the badge ID:

OCPP version	Start message	Badge field
1.6	StartTransaction	idTag
2.x	TransactionEvent with eventType Started	idToken

They are linked when both are for the same asset, through the Socket-to-Asset Map, and the timestamp of the OCPP start message is within 5 minutes of the transaction's start time. Outside those 5 minutes the transaction is not linked. When the badge belongs to one of your drivers, the session is linked to that driver.

The broker forwards all other OCPP messages (MeterValues, StatusNotification, Heartbeat and so on) to your CPMS without processing them.

Look at the charger details

1. Open your site, go to the OCPP Broker tab and click Details on the row of the charger.

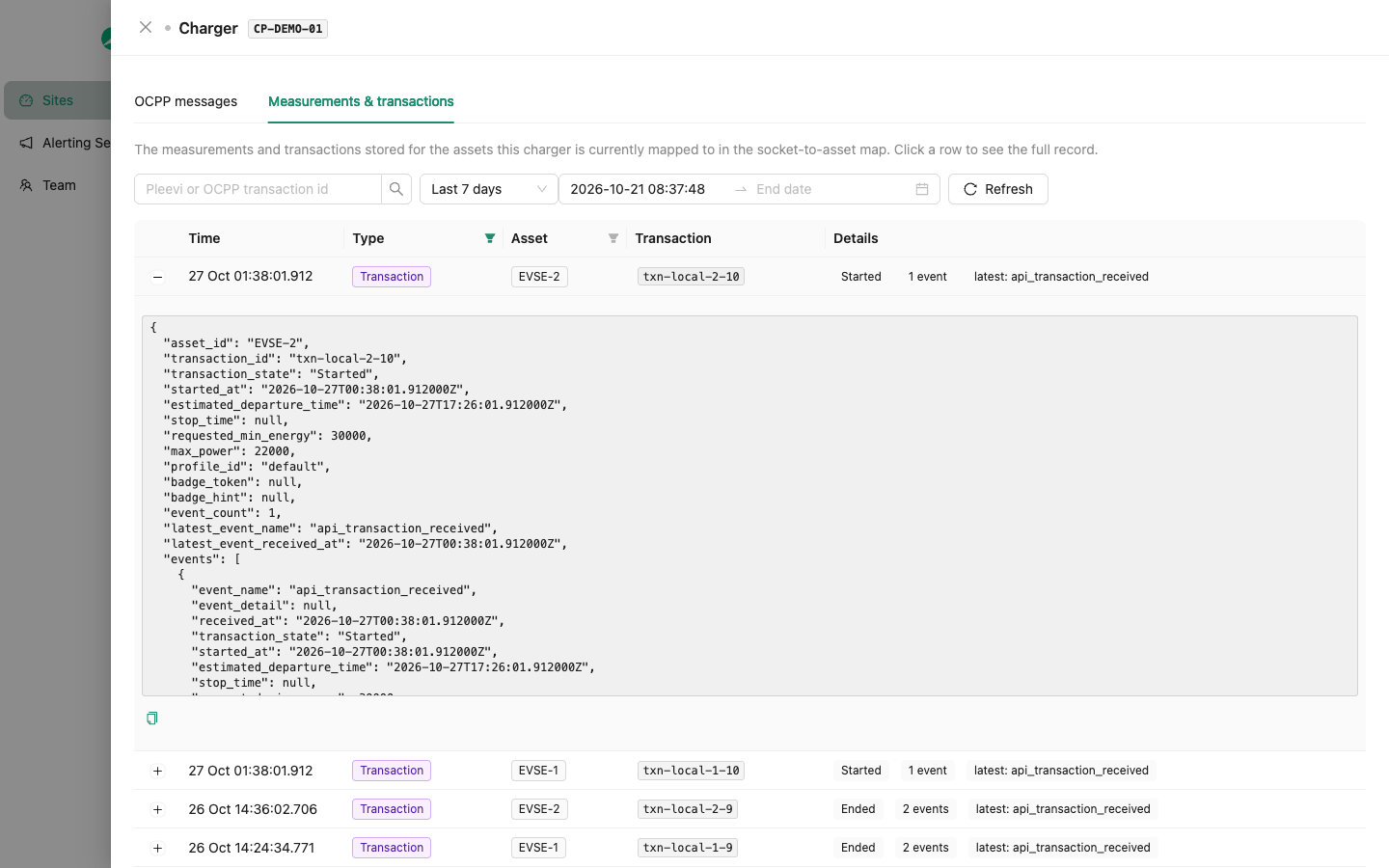

2. On the Measurements & transactions tab, find the transaction. Click it to see the full record, with its started_at time.

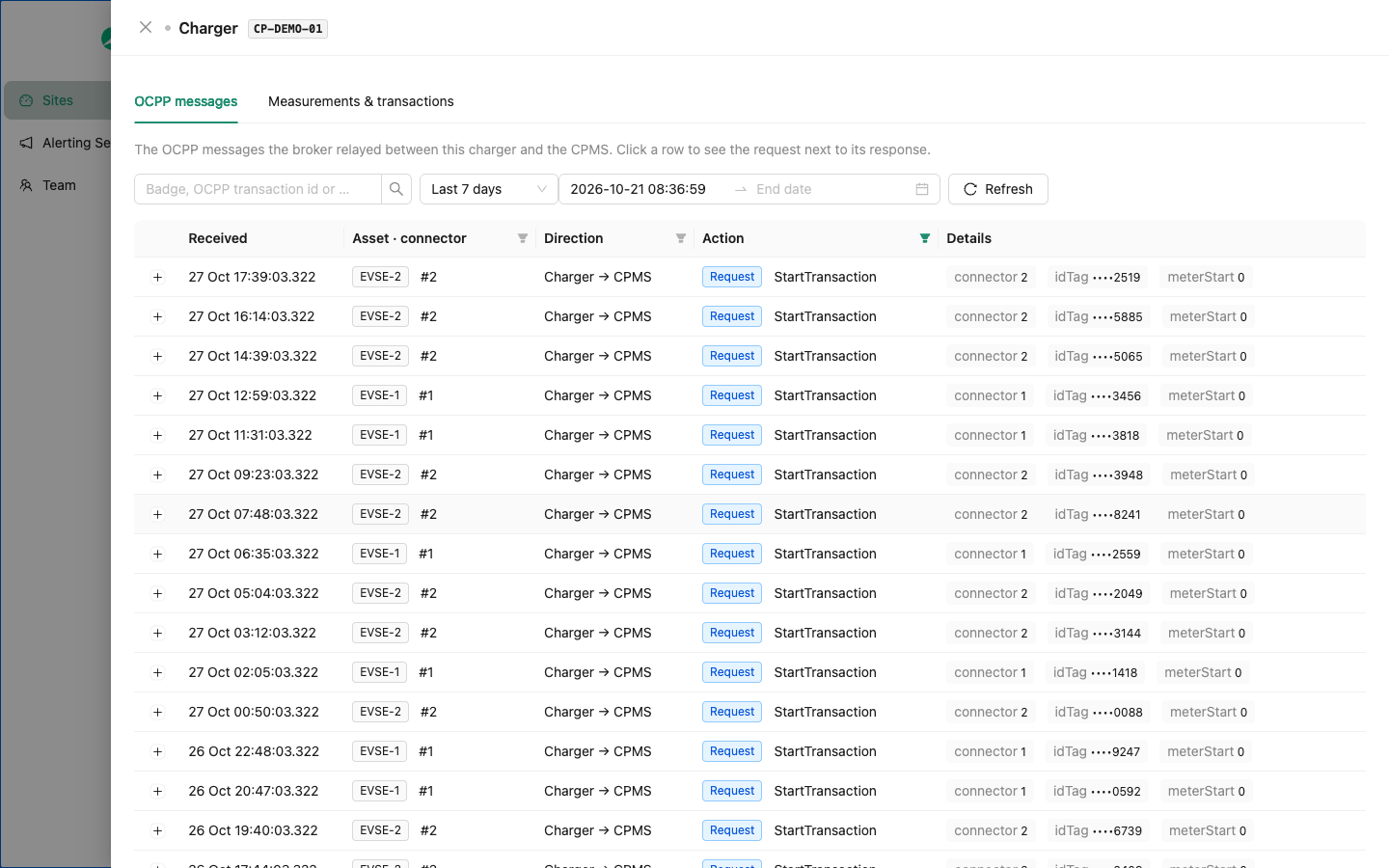

3. On the OCPP messages tab, set the time range around that start time. Filter the Action column on StartTransaction or TransactionEvent.

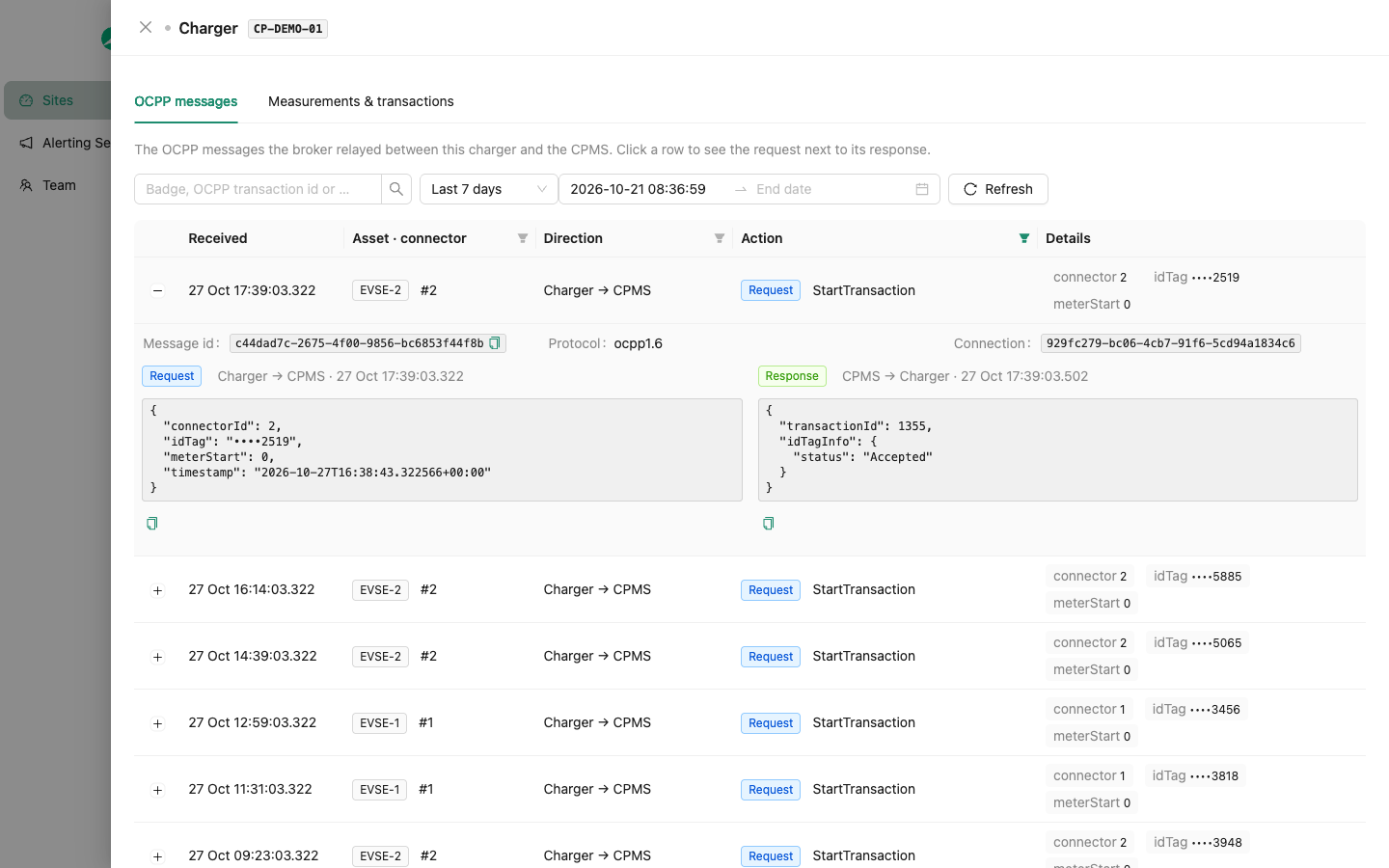

4. Click a message to see the request next to the response. Compare its timestamp with the transaction's start time, and check its connector or EVSE ID.

The filters in the column headers and the time range are kept in the page URL, so you can share the link with a colleague or with Pleevi support.

What you might find

What you see	Likely cause	What to check
The OCPP start message is there, but more than 5 minutes from the transaction's start time	The transaction reached Pleevi late, or with a start time that is off.	The logs of the system that sends transactions to Pleevi: your local controller or cloud service.
No OCPP messages around the start time, or a gap of minutes to hours	The charger lost its internet connection, or it was not yet pointed at the broker.	The charging station's logs, for connection drops and reboots around that time.
Messages come in, then stop and do not come back	The charger switched to another network profile that points to your CPMS directly. Chargers can hold several profiles and fall back to another one.	That every network profile and fallback on the charger points to the Pleevi broker URL.
The OCPP start message is on another connector than the transaction's asset	The Socket-to-Asset Map does not match the physical connectors.	The order of the assets in the charger's row, see Map chargers to assets.
The OCPP start message has no badge	The session was started without a badge, for example from an app or with free charging.	The authorization settings of the charger or your CPMS.

Still not linked?

Look in the charger's own logs for the moment it connects or switches to the Pleevi broker, and export that part or take a screenshot of it. Email it to support@pleevi.ai with:

• your site ID and the charge point ID,
• the transaction ID and its start time,
• the link to the charger details, with the filters you used.
